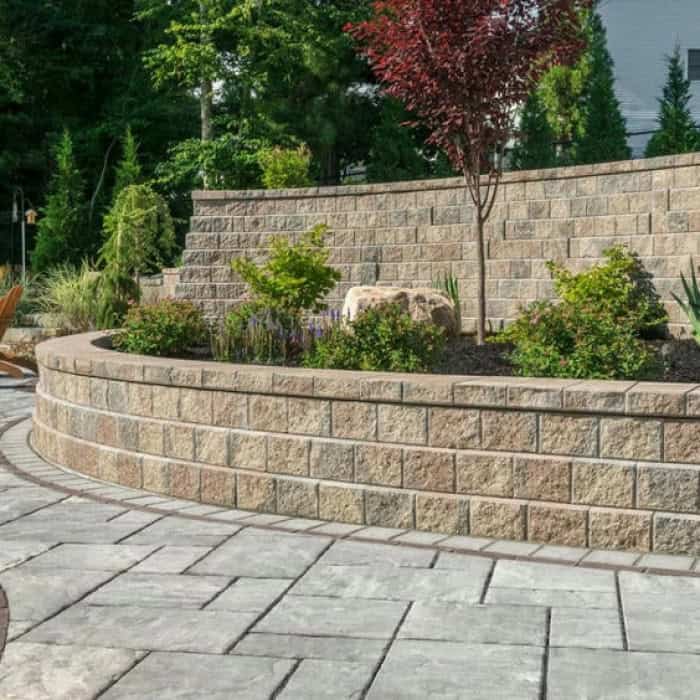

Coping

Pisa 2

pisa2-wall-sierra-8839-bo-2-1920x1080
pisa2-300x600x75-nevada-960x860
pisa2-300x600x75-natural-960x860
pisa2-300x600x75-sierra-960x860
pisa2-300x600x75-mahogany-960x860
pisa2-wall-sierra-8839-bo-2-1920x1080
pisa2-300x600x75-nevada-960x860
pisa2-300x600x75-natural-960x860
pisa2-300x600x75-sierra-960x860
pisa2-300x600x75-mahogany-960x860
pisa2-300x600x75-granite-960x860
Unilock

PISA2®

The antiqued, split face of RomanPisa makes it a more rugged-looking alternative to Pisa2. The built in setback design automatically forms the correct slope for retaining walls, and tapered units make it simple to build in straight or curved applications. Build gravity walls up to 2.5ft (1m) or grid reinforced walls up to 25ft (7.5m) high under typical conditions.

Applications
  • FIRE FEATURES
  • GARDEN WALLS
  • STEP
  • STRUCTURAL WALL
TECHNOLOGY
CLASSIC
COLOR
GRANITE
GRANITE
GRANITE
MAHOGANY
NATURAL
NEVADA
SIERRA
SHAPE & SIZE
150MM CORNER DOUBLE UNIT
150MM CORNER DOUBLE UNIT
200mm x 150mm x 300mm
7 7/8" x 5 7/8" x 11 7/8"
150MM STANDARD
150MM STANDARD
200mm x 150mm x 300mm
7 7/8" x 5 7/8" x 11 7/8"
150MM TAPERED
150MM TAPERED
200mm x 150mm x 300mm
7 7/8" x 5 7/8" x 11 7/8"
75MM COPING 24" DOUBLE UNIT
75MM COPING 24" DOUBLE UNIT
600mm x 75mm x 300mm
23 5/8" x 3" x 11 7/8"
COPING 24" DOUBLE UNIT
COPING 24" DOUBLE UNIT
600mm x 75mm x 300mm
23 5/8" x 3" x 11 7/8"
Full Detail

Pisa2

Pisa2 is the most versatile residential and commercial retaining wall block on the market today. Use Pisa2 to construct projects from low walls to high walls.

APPLICATIONS – Design and build projects such as planters, steps, grill islands, pillars, seat walls and water features. Can be used for straight and curved installations (Radius 5’ is the tightest radius).

CAPACITY – Gravity walls up to 39” (1m). Geogrid reinforced walls up to 20 ft. (6.1m).

RECOMMENDED BASE STABILIZATION – one layer of DriveGrid stabilization grid between subgrade and base material. Use under Standard Base or Permeable Base.

STANDARD BASE – Min. 6” – 8” of ¾” Crusher Run gravel (any road base standard in accordance with ASTM-D2940) compacted to 98% Standard Proctor Density (SPD).

ALTERNATIVE PERMEABLE BASE – Min. 6” – 8” of ¾“ clear open-graded stone compacted to achieve full particle lock-up and consolidation. (Clear open-graded does not compact but does consolidate slightly by rattling the particles together.)

LEVELING – Leveling retaining wall blocks directly on top of gravel is tedious and generally does not yield the best results. U-Grip Base units or universal base pads are recommended under all Unilock walls for improved accuracy and speedier installation. Additional benefits include long term structural integrity and an overall better appearance. Poured concrete leveling pads, reinforced with rebar, are also a great way to accomplish leveling, particularly for larger installations. You must ensure that the concrete is poured and finished perfectly in order to achieve a good visual appearance.

CONNECTION – features a tongue and groove connection. Use appropriate concrete adhesive for connection between units where the key has been removed or for corners. Always read adhesive manufacturers’ directions prior to gluing.

HANDLING – No specific handling instructions.

COPING - This wall requires coping. Choose a manufactured coping such as Unilock Universal Coping or any of our natural stone coping options. Install with tight joints or 3/16” gap between units and amend with an exterior latex caulking. Cutting may be required; a diamond blade saw is required to cut coping properly. Glue all coping using a specially formulated concrete adhesive that is strong and will not break down over time. Always read adhesive manufacturers’ directions prior to gluing.
