Eco-Promenade

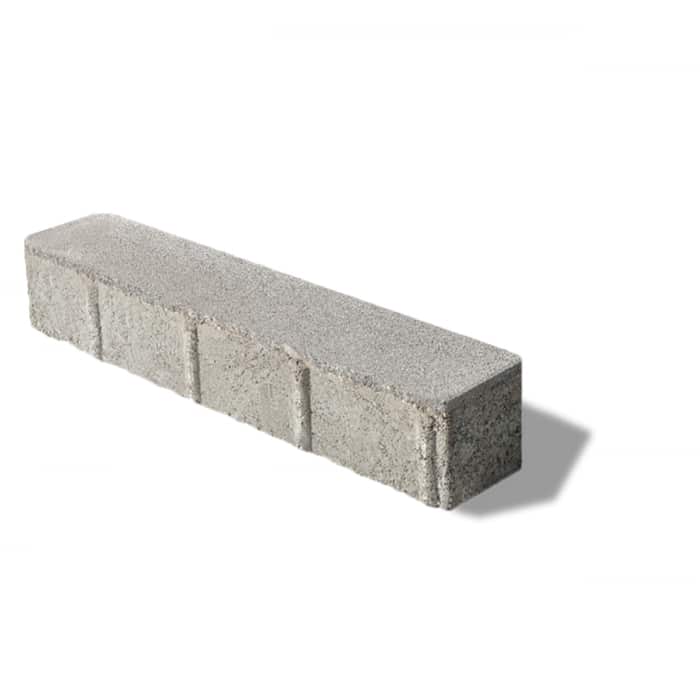

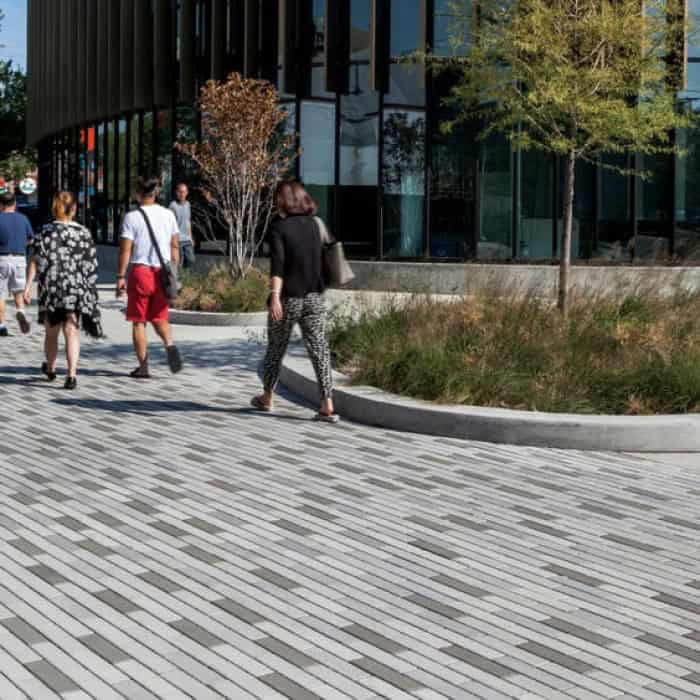

Eco-Promenade is a permeable, plank style paver that is appropriate for pedestrian or vehicular applications and can be manufactured by special order for large scale projects. Special spacer bars create a 7mm gap between Eco-Promenade units which allows water to flow through when installed on an open graded base with a fine stone chip between the joints. For large scale commercial projects, special order colors and textures are available.
ENDURACOLOR
- Two-step manufacturing process: Coarser base aggregates combined with color and wear-resistant surface aggregates
- Unaffected by frost, resistant to de-icing salts, slip resistant and chlorine pool water resistant
PERMEABLE
3″X12″ 75mm x 300mm x 100mm
3″ x 11 7/8″ x 3 7/8″
Eco-Promenade is a plank style paver sizes used for residential or commercial permeable applications. Eco-Promenade can be customized for your particular design requirements. (Minimum qty. applies)
RECOMMENDED BASE STABILIZATION – one layer of DriveGrid™" stabilization grid between subgrade and base material. Recommended depth 8” to 10” below pavers for maximum stability and performance. Use under Permeable Base.
STANDARD BASE AND BEDDING COURSE – Not applicable
PERMEABLE BASE – Min. 6” – 8” of ¾“clear open-graded stone compacted to achieve full particle lock-up and consolidation. (Clear open-graded does not compact but does consolidate slightly by rattling the particles together.)
PERMEABLE BEDDING COURSE – 1” thick of 1/4” clear open-graded chip stone – (ASTM No. 8) screeded over base.
SPECIAL NOTE: CONCRETE DIRECT OVERLAY –Not applicable
JOINTING MATERIAL AND JOINT STABILIZATION- Clear stone chip (ASTM No. 9) is swept in as jointing infill.
HANDLING – Can be installed by hand or mechanically by UniLyft.
EDGE RESTRAINT - Always install an edge restraint around the perimeter of any paver installation not restrained by building structures. Spike-in edge restraints come in plastic and metal and work well for most applications. A concrete curb or a sub-surface concrete wedge can also be installed to retain the edge.
PAVER COMPACTION - Always use a protective polymer pad on the bottom of your compactor when doing the final compaction of the pavers. An alternative is to use a rubber-roller compactor for the final compaction.
CLEANERS – Any cleaner specifically designed for pavers may be used for color restoration or general cleaning. Follow manufacturer’s dilution rates and application procedures. Always test a small area to make sure the results are as expected.
SEALERS
- Product may be sealed for aesthetic or cleanliness reasons but it is not required
- Use any sealer approved for concrete pavers
- Select type for desired aesthetics
- Product must be cleaned before sealing
- Always read and follow manufacturer’s application procedures
- Always test a small area to make sure the results are as expected
